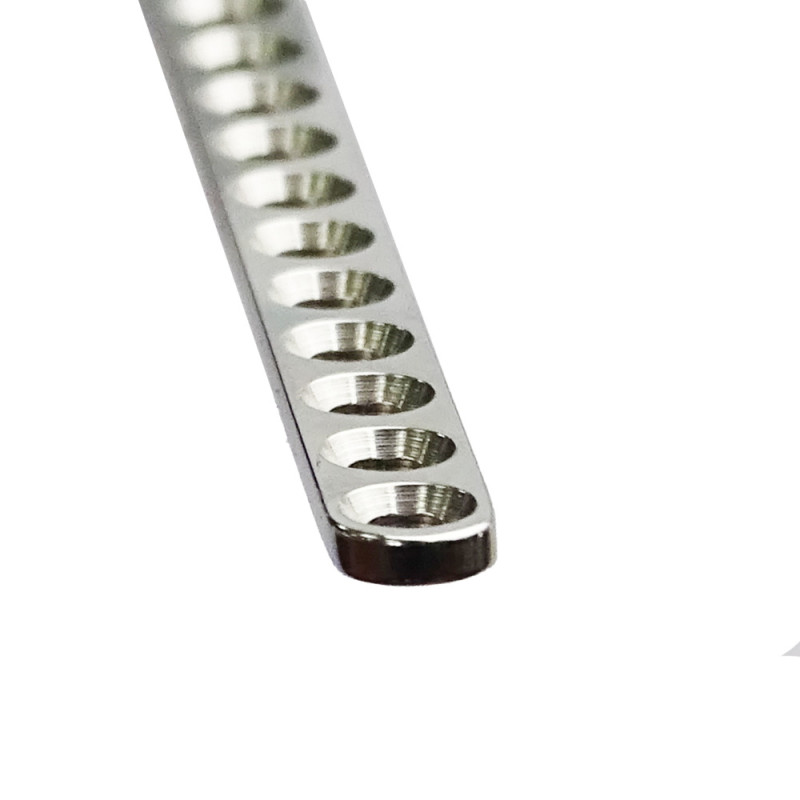

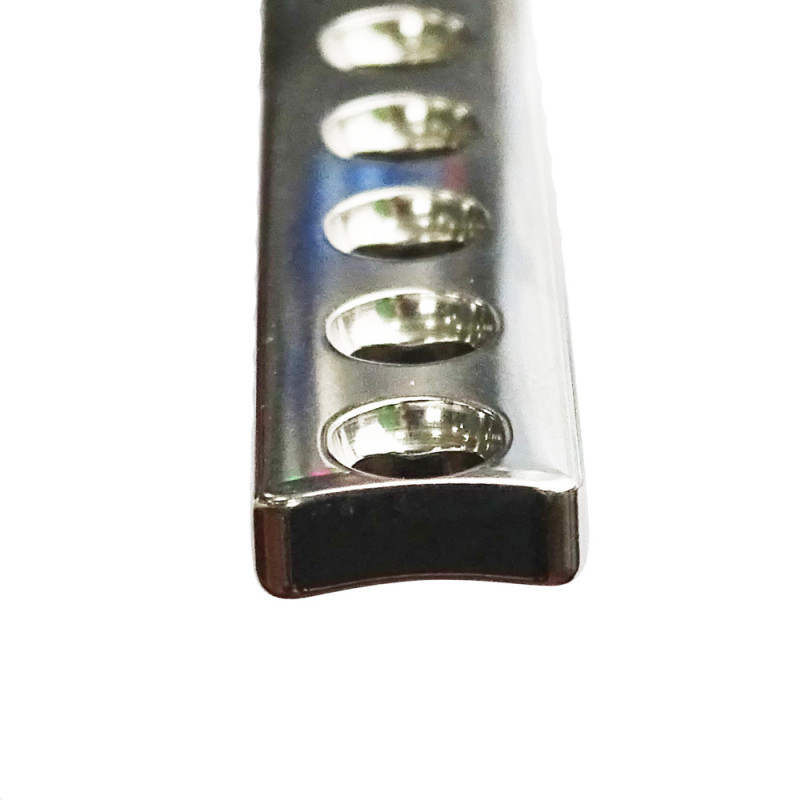

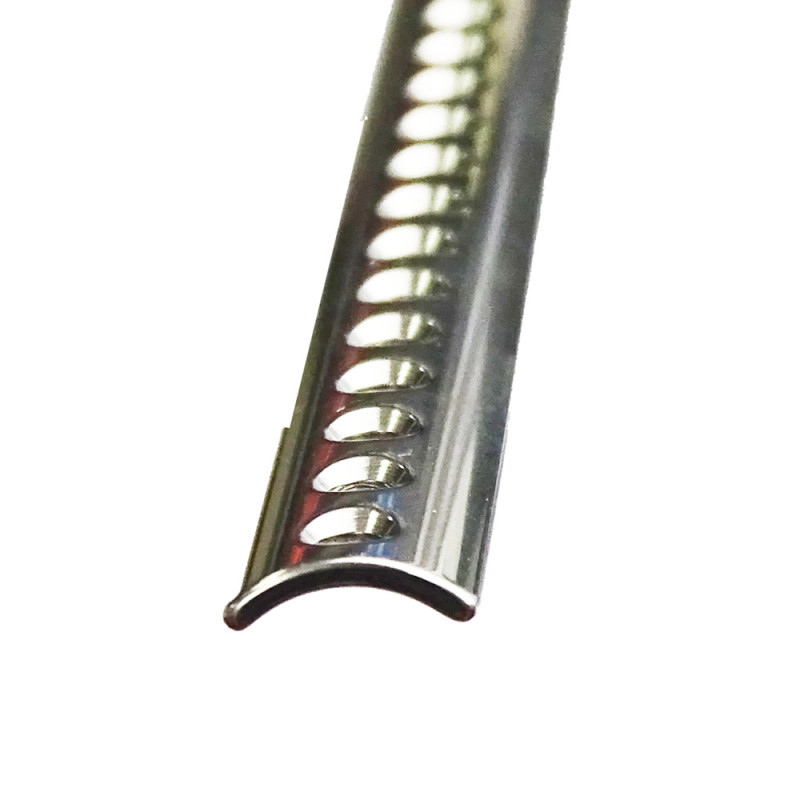

CUTTABLE PLATES
Range of VCP* plates, with different profiles (flat, one-third tubular, curved).
- Made exclusively from surgical stainless steel.
- Plates fit 2.0 mm, 2.7 mm and 3.5 mm diameter screws.
- From 20 to 55 round or oblong holes.
| Additional information | *Veterinary Cuttable Plate. |
|---|
Previous
Next
| Reference | Model | Length | Screw diameter | Width | Thickness | Number of holes | Hole type | Packaging |
| 266150 |
Curved
|
336 mm
|
3.5 mm
|
10.2 mm
|
3.2 mm
|
28
|
Round
|
by unit
|
| 266152 |
Curved
|
336 mm
|
3.5 mm
|
11.6 mm
|
4 mm
|
28
|
Round
|
by unit
|
| 266154 |
Flat
|
328 mm
|
2.7 mm
|
8 mm
|
2.5 mm
|
41
|
Round
|
by unit
|
| 266156 |
One-third tubular
|
300 mm
|
2.7 mm
|
9 mm
|
1.1 mm
|
50
|
Round
|
by unit
|
| 266158 |
Flat
|
330 mm
|
2 mm
|
5 mm
|
2 mm
|
55
|
Round
|
by unit
|
| 266160 |
One-third tubular
|
300 mm
|
2 mm
|
9 mm
|
1.1 mm
|
50
|
Round
|
by unit
|
| 266170 |
Flat
|
100 mm
|
2 mm
|
5 mm
|
1.5 mm
|
20
|
Oblong
|
by unit
|
| 266172 |
Flat
|
100 mm
|
1.5 mm
|
4 mm
|
1 mm
|
20
|
Oblong
|
by unit
|
