FLAMATIC®

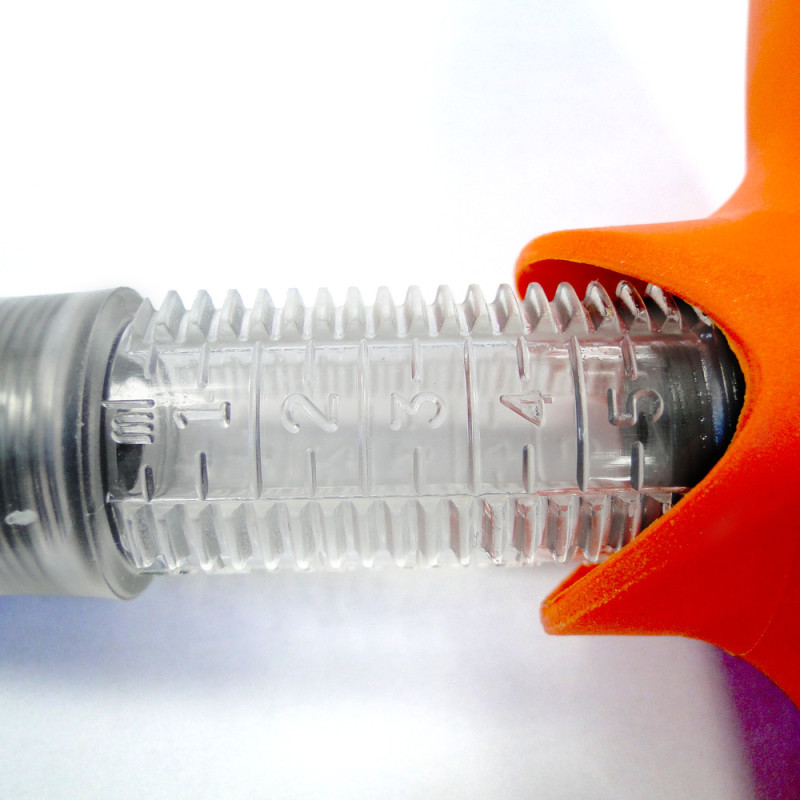

Automatic syringe with indelible engraved graduations of the barrel.

Can be completely disassembled.
Sterilisation: resistant to boiling water and autoclave up to 134°C (autoclave: completely disassemble the syringe, do not sterilise handles).
More compact than standard models for the same dose, using a patented system in which the spring and adjustment screw are not stacked.
The syringe can be held in two positions for ease of use.
Dose adjustment by turning the barrel on the front handle. This innovation brings the operator’s hand closer to the animal when the dose is smaller, for greater precision and easier handling.
Ergonomic handles with V-shaped washer for leverage and ease of use.
Easy lubrication of the barrel washer simply by removing the unit from the front valve assembly.
Valve assembly with stainless steel springs and plastic ball bearings to prevent the valves from sticking to the walls.
The needle is locked in the Luer hub by a cap with a flat surface that protects the animal from the hub.
Flat silicone seals, bevelled, highly resistant, hydrophobic, non-stick, ensuring perfect sealing and slight sliding of the piston for models with plastic hub (A) and O-rings for models with metal hub (B).
High-tech, sterilisable materials, resistant to pharmaceutical products.
Bottle adapter at the back for better support, and easy handling of bottles from 10 to 100 mL. This innovative device ensures flexibility and freedom of movement.
Bottle adapter fits 3 neck diameters, meaning all models on the market:
- 5 mL bottles,
- 10 mL to 100 mL bottles,
- 250 mL and 500 mL bottles with large necks.

SPARE PARTS:
106196 - Set of valves and springs (common to all models)
106155 - Set of 3 nuts (T1, T2, T3)

140504 - 1,5 m Ø 4/7 mm tubing

Delivery information	Supplied individually in a polyethylene bag with instructions for use, washers and valves set, and a 10 mL silicone oil bottle.

frbd_flamatic_tubmatic_ind_a.pdf

Reference	Type	Characteristics	Model	Capacity	Graduation	Packaging
105020	Flamatic® nut	Plastic hub	-	2 mL	0,1 mL	by unit
105022	Flamatic® nut	Metal hub	-	2 mL	0,1 mL	by unit
105025	Flamatic® nut	Plastic hub	-	5 mL	0,5 mL	by unit
105080	Flamatic® bottle adaptor	Plastic hub	-	2 mL	0,1 mL	by unit
105082	Flamatic® bottle adaptor	Metal hub	-	2 mL	0,1 mL	by unit
105085	Flamatic® bottle adaptor	Plastic hub	-	5 mL	0,5 mL	by unit
106196	Accessories	-	Balls, valves and springs set (common to all models)	-	-	by unit
105029	Flamatic® nut	Metal hub	-	5 mL	0.5 mL	by unit
105089	Flamatic® bottle adaptor	Metal hub	-	5 mL	0,5 mL	by unit
105087	Flamatic® bottle adaptor	Metal hub	-	5 mL	0,5 mL	by unit
