PISTOLMAN

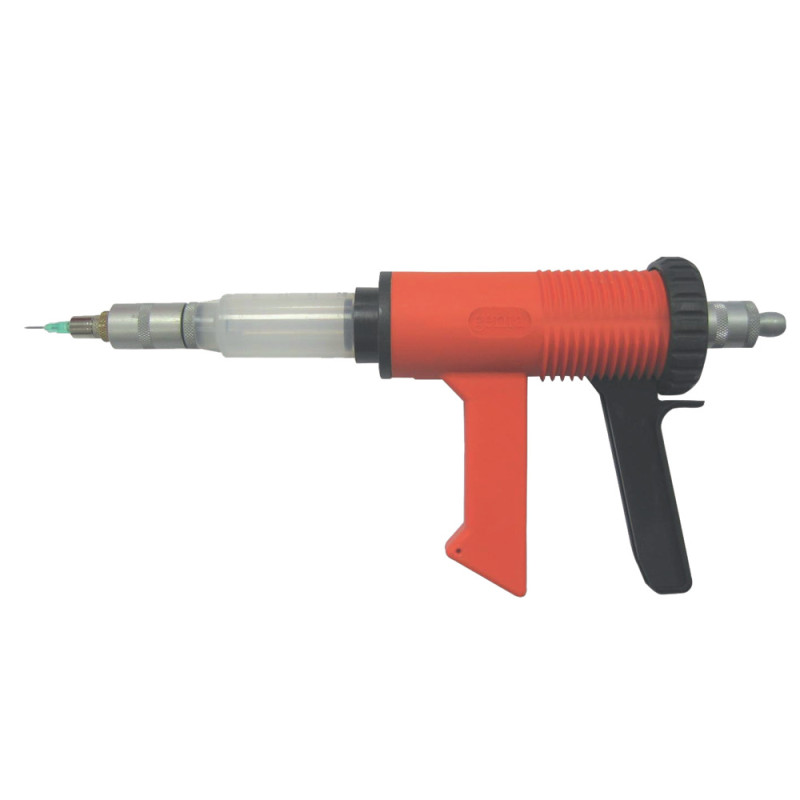

Universal manual (or automatic for 20, 50 and 70 mL models) drenching guns with interchangeable barrels.

Accurate, fast adjustment via the rear nut.
20, 50 and 70 mL models can be converted into automatic models or pour-on and automatic hypodermics by replacing the solid plunger with a perforated one and adding the front and rear valve assembly.
High-tech, heavy-duty plastic.
Can be entirely disassembled for cleaning.
Barrels are transparent, resistant to boiling water, with indelible, engraved graduations.
Short (105 mm) or long (180 mm) nozzle, brass or chrome-plated with a reinforced wall and an olive fitting at one end.
Aluminium nut for easier, more accurate positioning of the cannula and good sealing.
Galvanised steel handle springs which are colour-coded based on capacity.
Silicone o-rings.
All parts are easy to clean.
Compatible for use with standard pharmaceutical products.

Delivery information	Supplied in a polyethylene bag, with a nozzle, instructions for use, an additionnal ring and a 10 mL silicone oil bottle.

frbd_pistolet_drogueur_ind_a.pdf

Reference	Characteristics	Model	Capacity	Cannula diameter	Graduation	Packaging	Over-packaging
180060	Brass nozzle	Short	20 mL	6 mm	1 mL	by unit	-
180065	Brass nozzle	Short	50 mL	10 mm	2 mL	by unit	-
180070	Brass nozzle	Short	70 mL	10 mm	5 mL	by unit	-
180072	Brass nozzle	Long	70 mL	10 mm	5 mL	by unit	-
180075	Brass nozzle	Long	150 mL	10 mm	10 mL	by unit	-
180078	Brass nozzle	Long	250 mL	18 mm	25 mL	by unit	*uniquement pour produits épais.
180079	Brass nozzle	Long	250 mL	12 mm	25 mL	by unit	-
180300	Chrome plated nozzle	Short	20 mL	6 mm	1 mL	by unit	-
180302	Chrome plated nozzle	Short	50 mL	10 mm	2 mL	by unit	-
180305	Chrome plated nozzle	Short	70 mL	10 mm	5 mL	by unit	-
180306	Chrome plated nozzle	Long	70 mL	10 mm	5 mL	by unit	-
180308	Chrome plated nozzle	Long	150 mL	10 mm	10 mL	by unit	-
180310	Chrome plated nozzle	Long	250 mL	18 mm	25 mL	by unit	-
